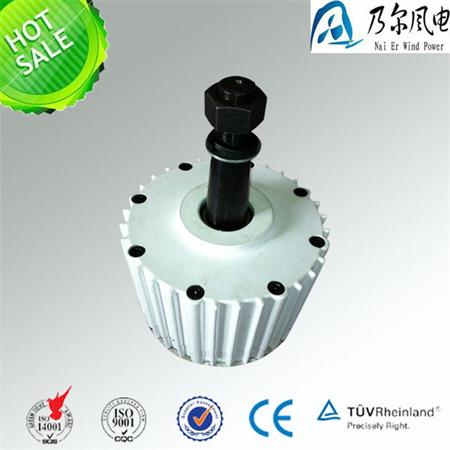

  Features:
  1.Gearless, direct drive, low RPM generator
  2.Small size and light weight: Its size and weight are 30% less than those of conventional generators.
  3.Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure.
  4.permanent magnet generator rotor using patented alternator, together with the special stator design, effectively
  reduce the generation of resistance torque, while allowing more wind turbines and generator has good matching characteristics, the unit runs reliability



Parameter




Model

NE-2KLP

Rated Power(w)

2000w

Max Power(w)

2500w

Rated Voltage(v)

48v/96V

Rated rotated speed(r/m)

500r/m

Top net weight(kg)

18kg

Output Current

AC

Start Torque(N*M)

0.78 Nm

Rated Torque(N*M):

31.8 Nm

generator

     3 phase permanent magnet
synchronous generator

Insulation Class:

F

Service Life:

More Than 20 years

Bearing

HRB or for your order

Shaft Material

stainless steel

Shell Material

aluminium alloy

Permanent Magnet Material

Rare Earth NdFeB

Protection Grade

IP54

Lubrication

Lubrication Grease

Working temperature

-40℃ - 80 ℃
