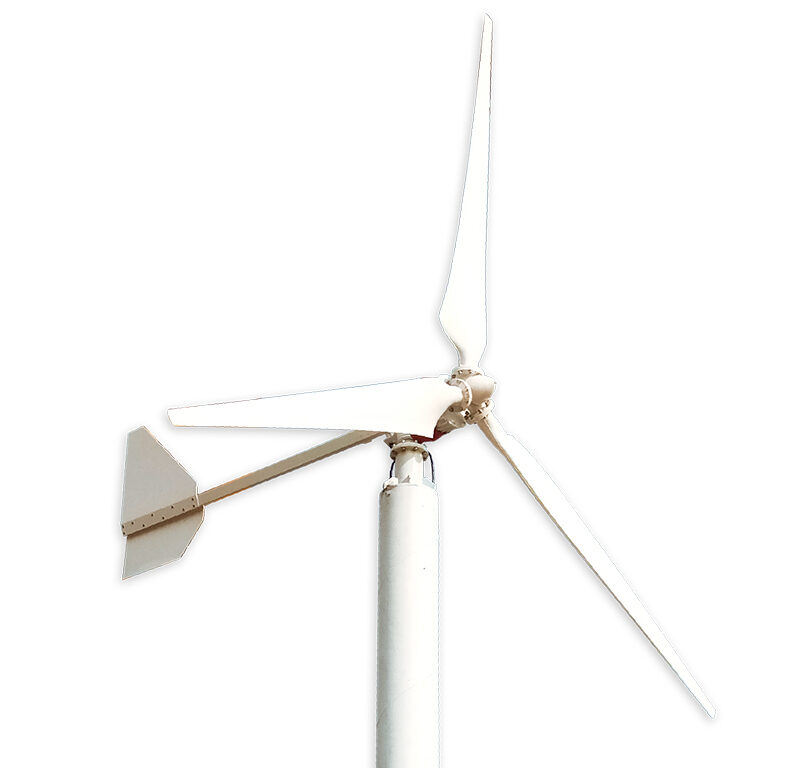

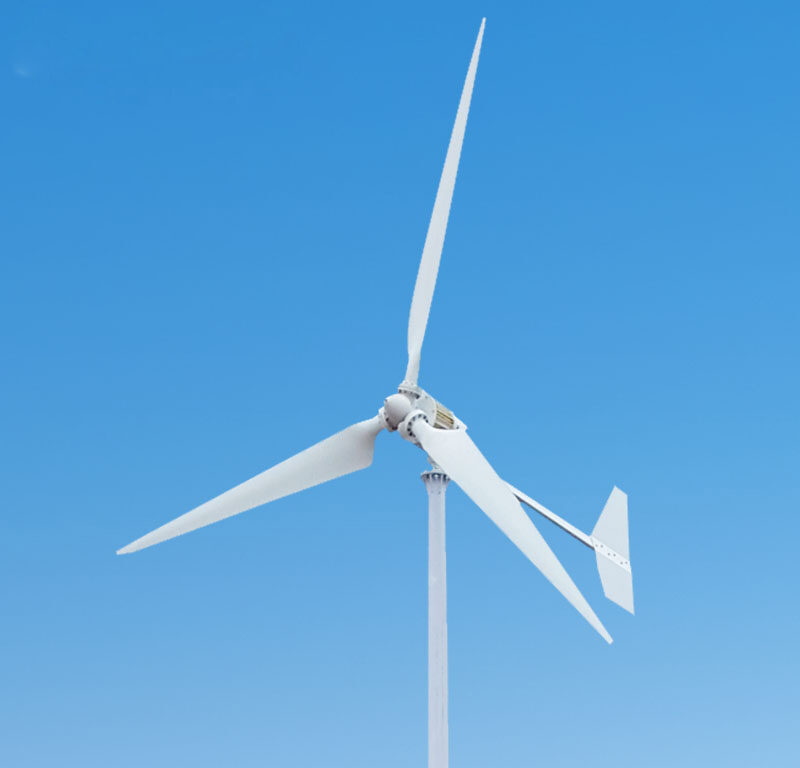

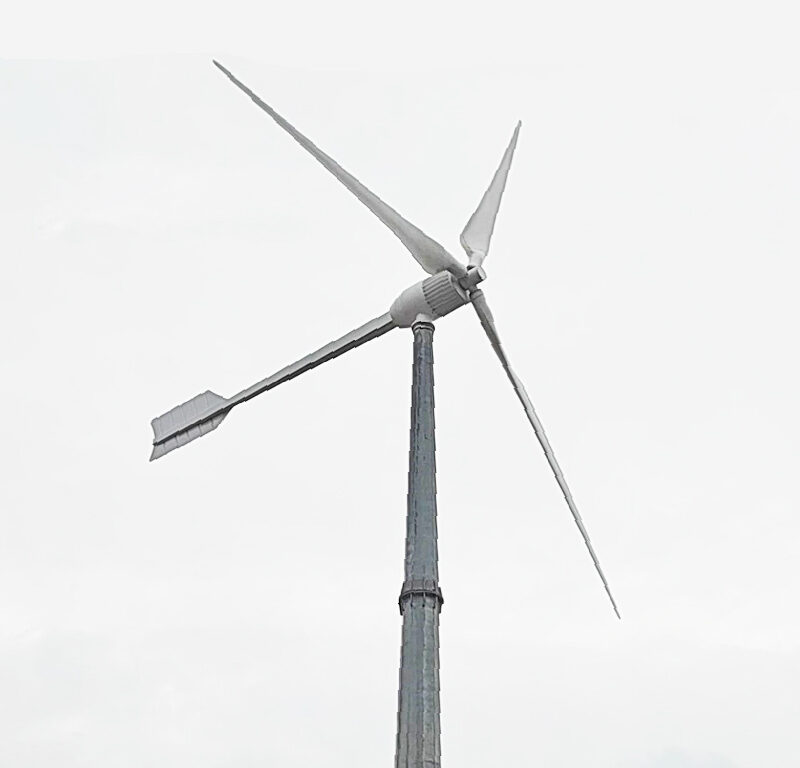

5kW-30kW wind turbine, active pitch control, mechanical braking, factory delivery
●Excellent power output performance.High efficient synchronized PMG generator with low starting torque. Lower RPM rotational speed avoid the risk of over speed malfunction and bring lower noise emission ●Dual brake protection systems as reliable passive self‐furling and electromagnetic brake. Equipped with high quality NSK brand sealed bearing ●Long life span design by using superior aluminum…
| Power: |
5kW-30kW |
|---|---|
| System Type: |
Horizontal Wind Turbine |
-
Number of blades
3
-
Blades material
Reinforced glass fiber
-
generator
Three-phase AC permanent magnet synchronous generator
-
Magnetmaterial
NdFeB
-
Generator case
Casting aluminum alloy
-
Control system
Electromagnet/mechanical brake
-
Speed regulation
Automatically adjust windward direction
-
Working temperature
-40°C - 80°C
-
Design life
20 y
-
Start up speed(m/s)
2.5m/s
●Excellent power output performance.High efficient synchronized PMG generator with low starting torque. Lower RPM rotational speed avoid the risk of over speed malfunction and bring lower noise emission
●Dual brake protection systems as reliable passive self‐furling and electromagnetic brake. Equipped with high quality NSK brand sealed bearing
●Long life span design by using superior aluminum alloy and cast steel in accurate die‐casting tech and the anti‐corrosion treatment for all kinds of circumstances
| Model | NE-5000 GF | NE-10K GF | NE-15K GF | NE-20K GF | NE-30K GF |
| Power(kw) | 5kw | 10kw | 15kw | 20kw | 30kw |
| Rated voltage(V) | 48v/96v/120v/192v /220v/240v/380v | 192v/220v/240v/380v/420v/480v | |||
| Start up speed(m/s) | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s |
| Rated wind speed(m/s) | 10-11m/s | 10-11m/s | 10-11m/s | 10-11m/s | 10-11m/s |
| Survival wind speed (m/s) | 45m/s | 45m/s | 45m/s | 45m/s | 45m/s |
| Number of blades | 3 | ||||
| Blades material | Reinforced glass fiber | ||||
| generator | Three-phase AC permanent magnet synchronous generator | ||||
| Magnetmaterial | NdFeB | ||||
| Generator case | Casting aluminum alloy | ||||
| Control system | Electromagnet/mechanical brake | ||||
| Speed regulation | Automatically adjust windward direction | ||||
| Working temperature | -40°C – 80°C | ||||
| Design life | 20 y | ||||
Permanent magnet direct drive generator
The magnet is made of high-quality neodymium iron boron high-temperature resistant magnetic material, with small starting torque and low noise.
Aerodynamic blade design
The blades are designed with advanced aerodynamics and reinforced fiberglass material to ensure reliable operation.
Adapt to various complex and harsh working environments
The motor housing is made of high-strength aluminum alloy material and is integrally cast with a mold. The surface is treated with spray coating for corrosion resistance, making it suitable for various complex and harsh working environments.
