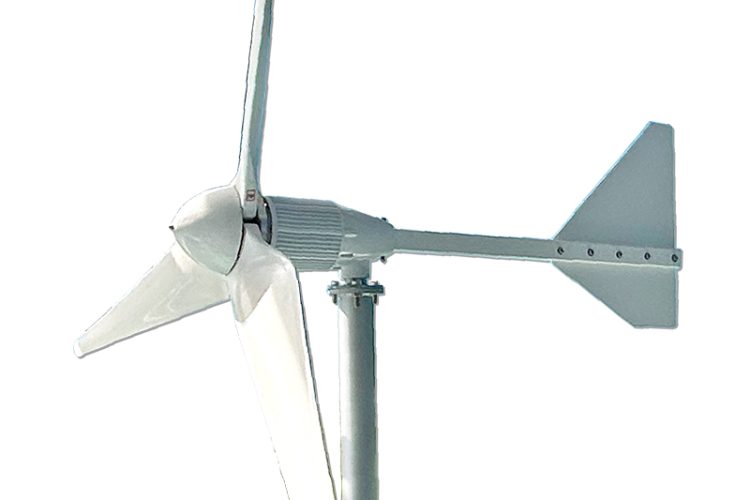

2.5kW-3kW small horizontal axis wind turbine, shipped by the manufacturer
● Adopt low speed permanent magnet generator, direct drive gearless transmission design. ● Having CE, ISO9001 multiple certifications and multiple intellectual property patents. ● The wind turbine blades are formed through precision manufacturing using a new process, with optimized aerodynamic shape design and structural design, easy installation, high utilization coefficient of wind energy, increased annual…
| Power: |
2.5kW-3kW |
|---|---|
| System Type: |
Horizontal Wind Turbine |
-
Start-up wind speed
2.5m/s
-
Rated wind speed(m/s)
11m/s
-
Number of blades
3
-
Blades material
Reinforced glass fiber
-
Magnetmaterial
NdFeB
-
Generator case
Casting aluminum alloy
-
Control system
Electromagnet/wind wheel yaw
-
Speed regulation
Automatically adjust windward direction
-
Working temperature
-40°C - 80°C
-
Design life
20 y
● Adopt low speed permanent magnet generator, direct drive gearless transmission design.
● Having CE, ISO9001 multiple certifications and multiple intellectual property patents.
● The wind turbine blades are formed through precision manufacturing using a new process, with optimized aerodynamic shape design and structural design, easy installation, high utilization coefficient of wind energy, increased annual power generation.
| Model | NE-2500L2 | NE-3000L2 |
| Power(kw) | 2.5kw | 3kw |
| Rated voltage(V) | 48v/96v/120v/192v/220v/240v/380v | |
| Start up speed(m/s) | 2.5m/s | 2.5m/s |
| Rated wind speed(m/s) | 11m/s | 11m/s |
| Survival wind speed(m/s) | 45m/s | 45m/s |
| Number of blades | 3 | |
| Blades material | Reinforced glass fiber | |
| generator | Three-phase AC permanent magnet synchronous generator | |
| Magnetmaterial | NdFeB | |
| Generator case | Casting aluminum alloy | |
| Control system | Electromagnet/wind wheel yaw | |
| Speed regulation | Automatically adjust windward direction | |
| Working temperature | -40°C – 80°C | |
| Design life | 20 y | |
Professional manufacturer of small and medium-sized wind turbines
Having over 10000 square meters of production workshops, 36 types of products, exported globally.

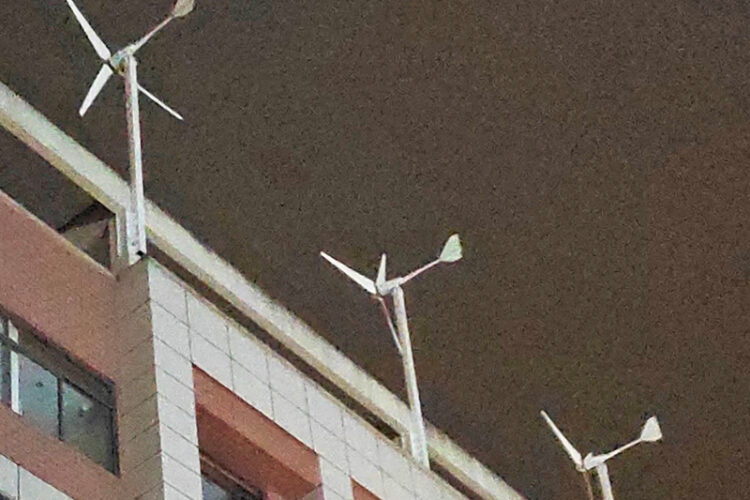

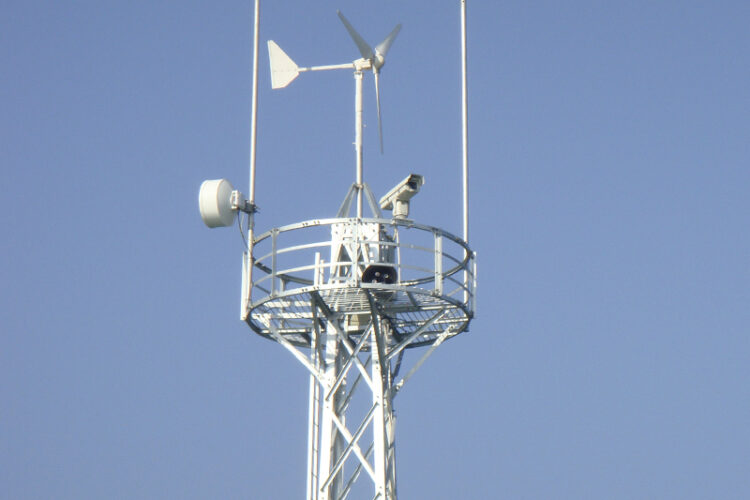

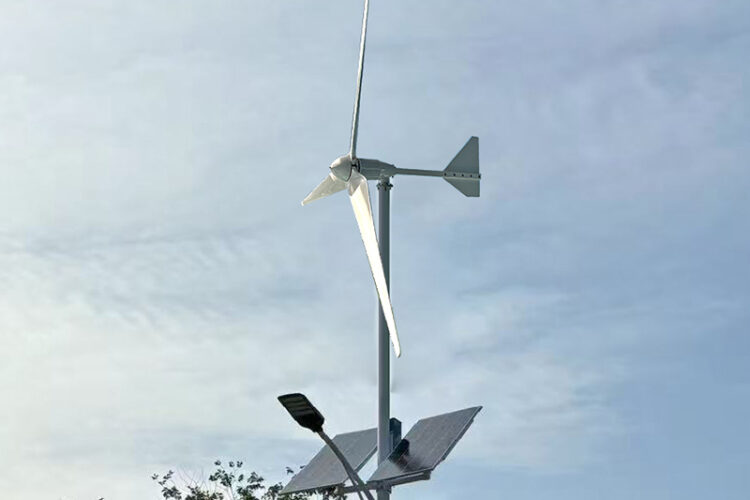

Wide range of installation applications
Adopting humanized design, the overall components are lightweight, flexible, and easy to lift, install, and disassemble.
Low speed permanent magnet generator
Multi level safety protection such as electromagnetic brakes and automatic side deviation with independent intellectual property rights of the company, ensuring safe and stable operation of the wind turbine in extreme weather conditions based on real-time monitoring data.
